How do you install the wiring for your FRITZ!Box (7530, 7490, 7390 and 7570)?

The cables for your FRITZ!Box 7530 correspond to the cables for your FRITZ!Box7490, FRITZ!Box7390 and FRITZ!Box7570. To set up the wiring, please follow the steps below:

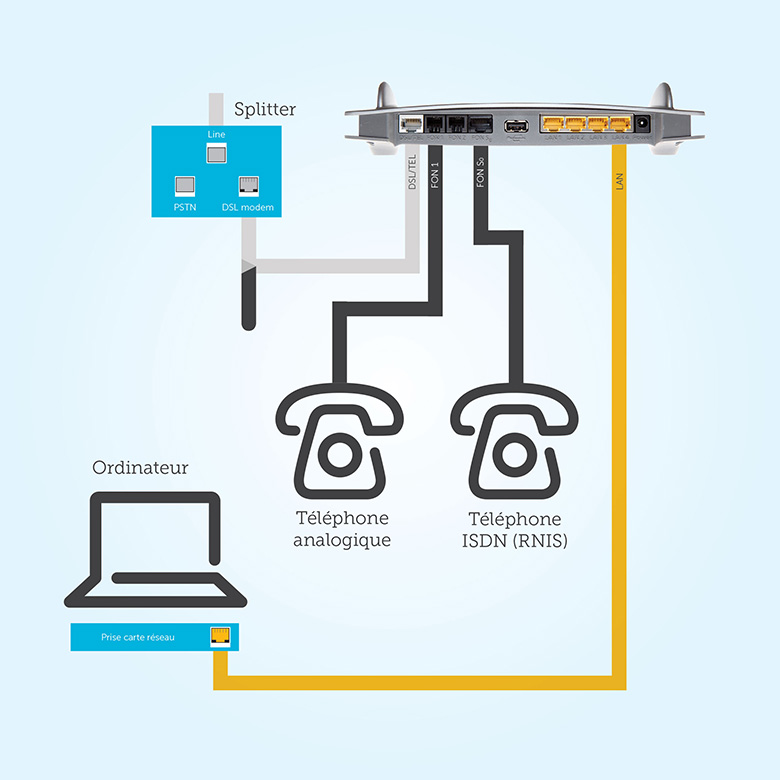

VSDL

1. Connecting HomeServer to your internet line: Connect an Ethernet cable to your wall socket and to the splitter ‘LINE’ input.
2. Connecting the splitter to the HomeServer: Connect an Ethernet cable to the splitter ‘DSL MODEM’ input and to the HomeServer ‘DSL’ input.
3. Connecting HomeServer to your computer: Connect your computer either via an Ethernet cable to one of the four HomeServer LAN sockets, or via Wi-Fi.
4. You can also watch this video installation guide.

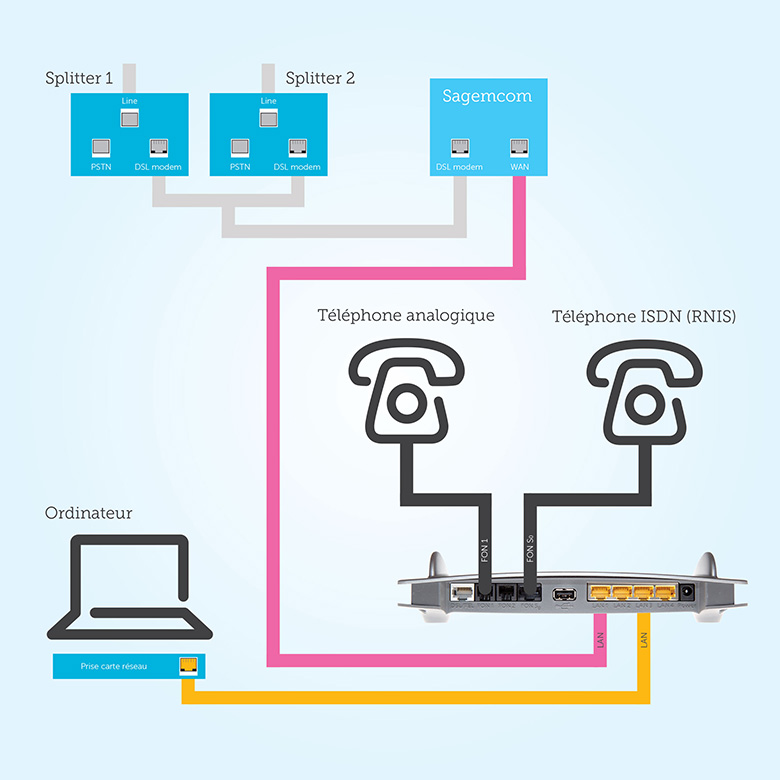

Bonding

1. Take the Y-cable from the two-ended side and connect each end to the DSL input of each splitter (A)
2. Connecting the Y-cable to the Sagemcom: Connect the other end of the Y-cable to the Sagemcom (B) DSL input
3. Connecting Sagemcom to the HomeServer: Connect your Ethernet cable to the Sagemcom (C) WAN output and to the LAN1 input of your HomeServer (D).
4. You can also watch this video installation guide.

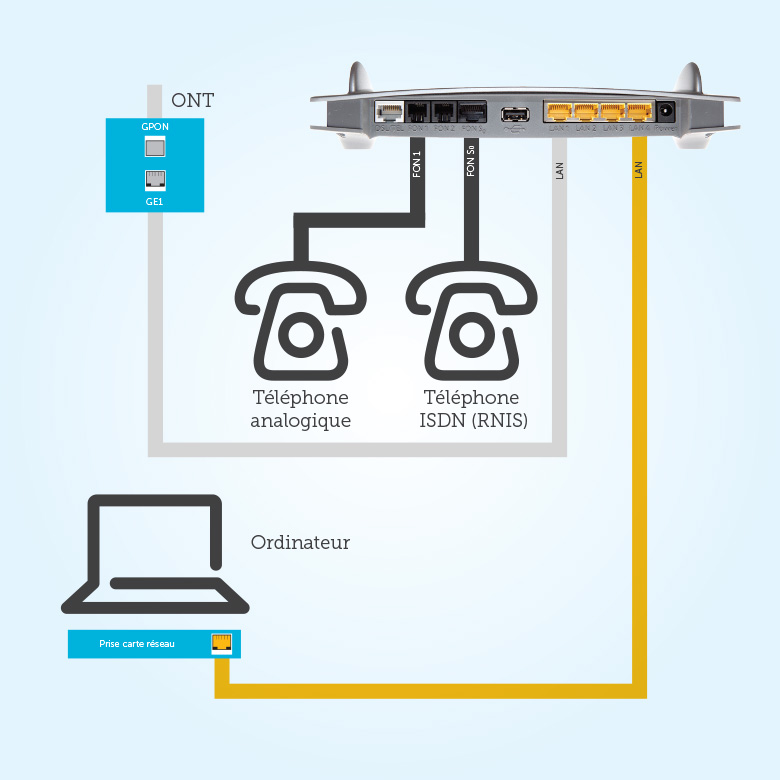

GPON (not necessary for installing your FRITZ!Box7570). To install GPON cabling, follow the same steps as for VDSL:

1. How to connect your HomeServer to your internet line: connect an Ethernet cable to your wall socket and to the ONT ‘GPON’ input.
2. How to connect the ONT to your HomeServer: connect an Ethernet cable to the HomeServer LAN1 input and the ‘GE1’ input of your ONT.
3. How to connect your HomeServer to your computer: connect your computer either via an Ethernet cable to one of the three remaining HomeServer LAN sockets, or via Wi-Fi

For any other questions, please contact one of our advisors free of charge on 8002 8004.
